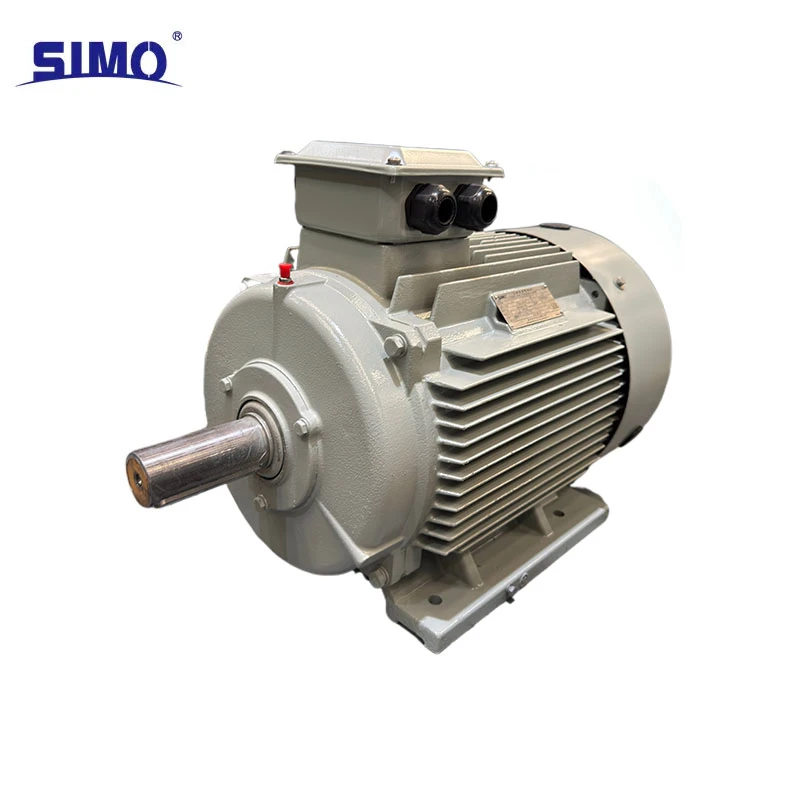

Engine IM1081-YE4-180M-2-22kW-380V

1. Protection and cooling system

The engine is made in a completely enclosed design with independent fan cooling according to the IC411 scheme, the housing protection℃is IP55. Effectively blocks dust, fibers, moisture, aggressive vapors and splashing liquids from entering the equipment. High tightness allows long-term operation of the unit in difficult conditions of the metallurgical, construction, chemical, light and mining industries with increased dust and humidity.

2. Magnetic core design and electromagnetic system

Made of high quality cold rolled silicon steel with high magnetic permeability and minimal magnetic loss. The elongated design of the stator and rotor cores has undergone digital electromagnetic optimization, ensuring uniform distribution of the magnetic field. Reduces magnetic, copper and scattered losses, eliminates local overheating and guarantees stable operation of the electromagnetic unit. 3. High-quality insulation

Heat-resistant class F insulation with a maximum permissible temperature of 155℃is used. Quality control is carried out according to class B heating standards, which creates a large operational safety margin. Prevents insulation aging, electrical erosion and insulation breakdown during long-term operation and load fluctuations, increases resistance to overloads and extends the service life of electrical equipment.

4. High precision squirrel cage rotor

The rotor is made using high-pressure aluminum casting technology from high-purity aluminum alloy, has a dense homogeneous structure and low internal resistance. High-precision dynamic balancing ensures smooth power transmission, reduces losses and heat generation during rotation, and eliminates runout and vibration during long-term high-speed operation.

5. Robust mechanical housing design

The housing and bearing caps are cast from thickened high-strength cast iron, have increased rigidity, resistance to mechanical loads, deformations and resonant vibrations. The standard height of the rotation axis of 180M complies with international IEC standards; standardized mounting dimensions make it possible to easily replace outdated motors of the YE2, YE3 series without additional equipment modernization.

1. Ultra-high energy efficiency and economic benefits

The motor belongs to the ultra-high energy efficiency class IE4, fully complies with the requirements of the national standard GB18613-2020 for high-class energy saving equipment. Compared with YE3 series motors, it can significantly reduce energy consumption. With continuous operation in mode S1, it provides a significant reduction in operating costs and complies with government energy saving and low-carbon production programs.

2.Stable, long-lasting operation and universal conditions

Optimized heat dissipation system and low-loss electromagnetic design provide efficient heating control, slow thermal decay and high thermal stability. The unit operates with low levels of vibration and noise, is designed for round-the-clock continuous operation, and stably withstands constant and variable production loads.

3.Wide scope of application and compatibility with equipment

Standard three-phase voltage 380V, double-pole design and rated power 22kW guarantee stable power, smooth start and constant torque. It is actively used in the assembly of fans, industrial pumps, compressors, transport and technological equipment for the chemical, construction, food and general industrial industries.

4. Easy maintenance and low operating costs

Robust design, high℃of protection and high-quality components provide high wear resistance, resistance to aging and corrosion in difficult production conditions. The modular design simplifies diagnostics, repair and replacement of parts, increases the turnaround time and minimizes the cost of maintenance and spare parts.

5. Full regulatory compliance and guarantee of application in projects

All products have a full set of certificates for energy efficiency, quality and compliance with regulatory requirements. Technical and operational indicators fully meet current industrial standards. Suitable for use in investment projects, tender purchases, modernization and environmental control programs, guarantees full legitimacy of operation.
