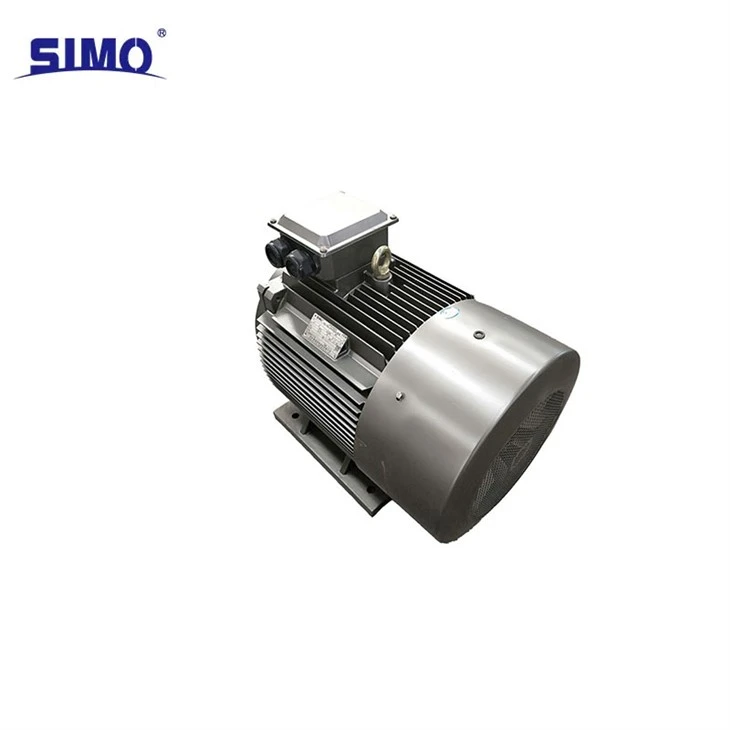

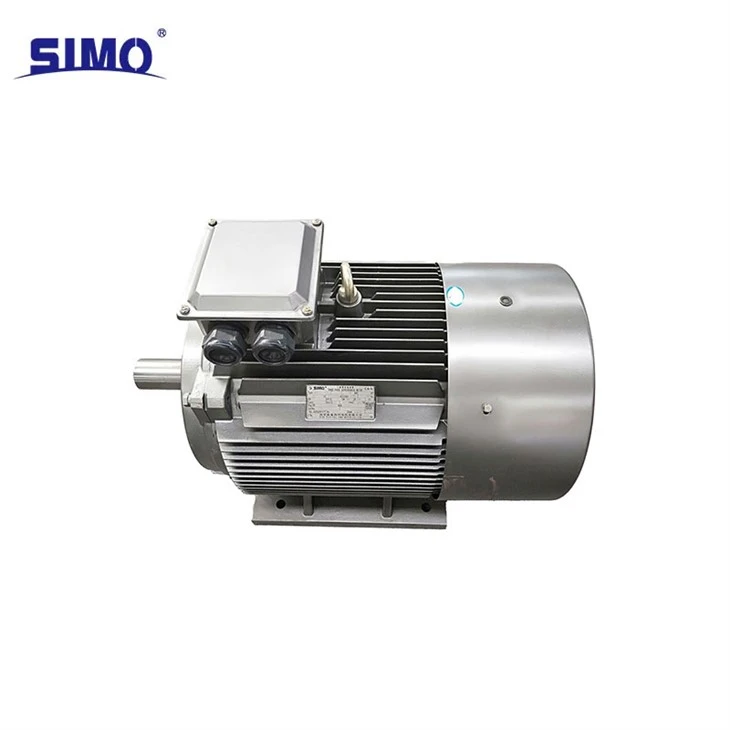

Engine Description
YE3 - series motor is an ultra-efficient and energy-saving three-phase asynchronous motor developed by our company. Cooling mode - IC411. The motor characteristics comply with the requirements of standard GB/T 755 “Rotating electrical machines. Ratings and performance" and GB/T 28575 standard "Technical characteristics of YE3 series motors (IP55) high efficiency three-phase asynchronous motor (frame size 63-355). Its efficiency meets the energy efficiency standard class 3 in GB 18613-2020 and complies with IE3 in the international standard IEC 60034-30 “Energy efficiency class of single-speed three-phase squirrel-cage induction motors”. This series of products can completely replace the outdated low voltage three-phase asynchronous motors such as Y, YGM, YGM2 and YE2 series.
Engine parameters
|
Rated power |
Rated current |
Speed |
Efficiency |
Power factor |
Fixed torque |
Locked Current |
Maximum torque |
Rated torque |
Idle noise |
Weight |
|
|
kw |
A |
r/min |
% |
Cosφ |
Rated torque |
Nominal Current |
Rated torque |
N•m |
dB(A) |
Kg |
|
|
Asynchronous speed 1500(r/min) |
|||||||||||
|
YE3-80M2-4 |
0.75 |
1.8 |
1435 |
82.5 |
0.75 |
2.3 |
6.6 |
2.3 |
4.8 |
56 |
20 |
