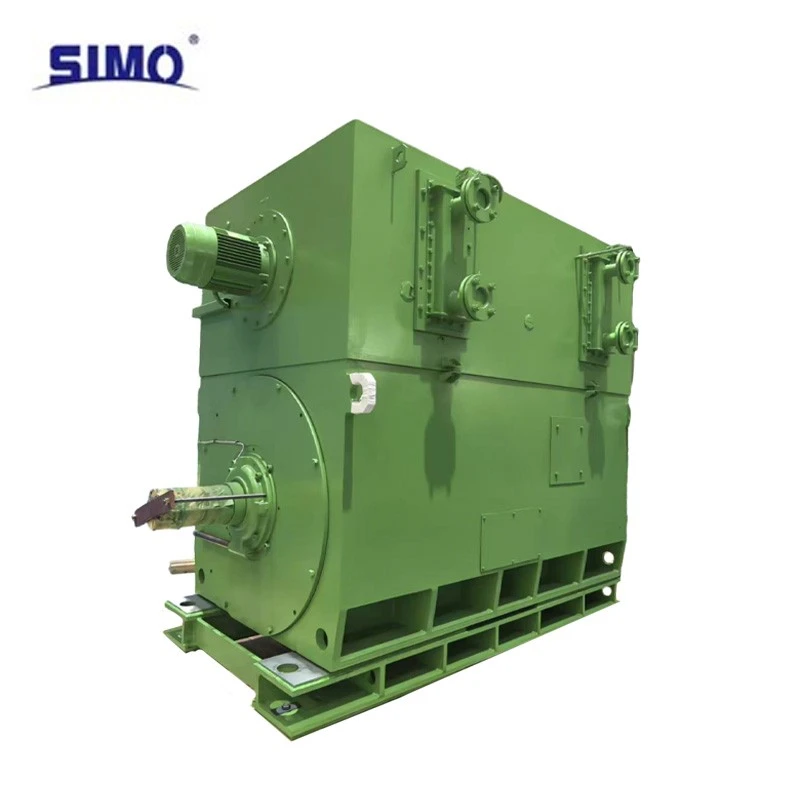

Three-phase asynchronous electric motor s1 YJTKS560-4T1-2300KW-10KW-IC86W

Welded box type structure: Adopting box type welded frame made of steel sheet, it has high rigidity and excellent vibration resistance, meeting the requirement of mechanical stability under high voltage conditions. Installation configuration - horizontal IMB3, with standardized mounting dimensions for increased versatility.

Highly efficient electromagnetic and insulation system: The stator windings use Class F insulation treated with Vacuum Pressure Impregnation (VPI), which provides reliable insulation with heat resistance up to 155 degree. The cage type rotor ensures high precision dynamic balance. Combined with an optimized electromagnetic design, this reduces losses and improves speed control response.

Adaptive high voltage protection: IP54 rating can withstand dust and splashing water, suitable for harsh industrial environments. The terminal box adopts a sealed design specially designed for high voltage, with rational terminal layout and reliable grounding, ensuring safe operation under high voltage.

Excellent speed control performance: High adaptability to frequency conversion, smooth speed control over a wide range of 5-70Hz, high starting torque and high speed control accuracy. Ability to precisely match load flow and pressure control requirements, significantly reducing throttling losses and providing significant energy savings.

High adaptability to the environment: Reliably operates at an altitude of<=1000 m and at ambient temperatures from -15℃to 40 degree. With IP54 protection and heat-resistant design, it is suitable for use in outdoor and industrial environments, including dusty or humid environments.

Ease of operation and maintenance: Standardized design makes it easier to inspect critical components. The rational layout of coolers and terminal boxes provides sufficient space for maintenance. The bearings are equipped with lubrication devices, which increases service intervals and reduces operating costs.

Widely used in the energy, metallurgy, mining, chemical and building materials industries. Suitable for high voltage variable speed drives in large equipment including fans, pumps, air compressors, conveying equipment and coal mills. Particularly suitable for large industrial systems that require energy-saving upgrades with variable frequency drives, helping businesses reduce energy consumption and automate upgrades.
