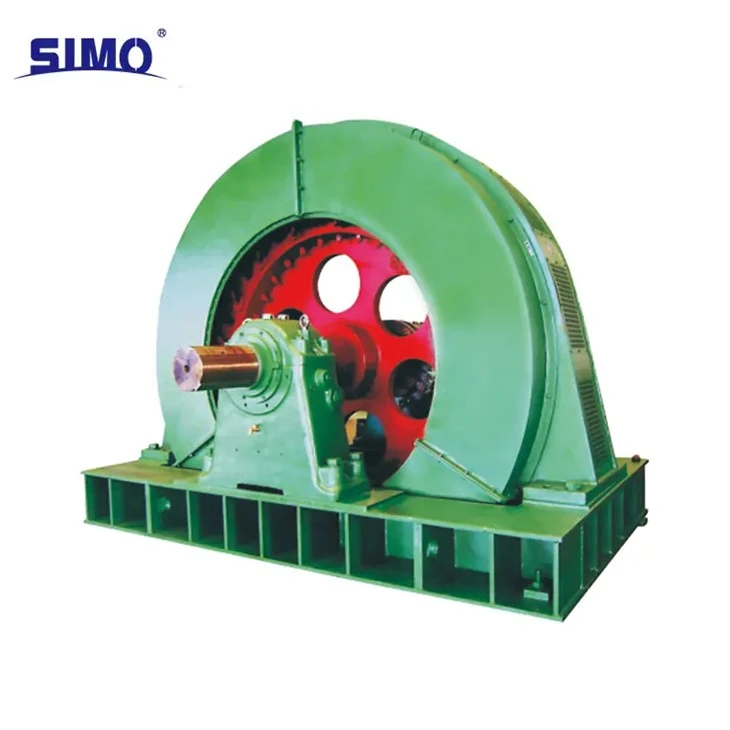

Synchronous mill motor TDMK450-30/2150-450KW-6KW-50HZ

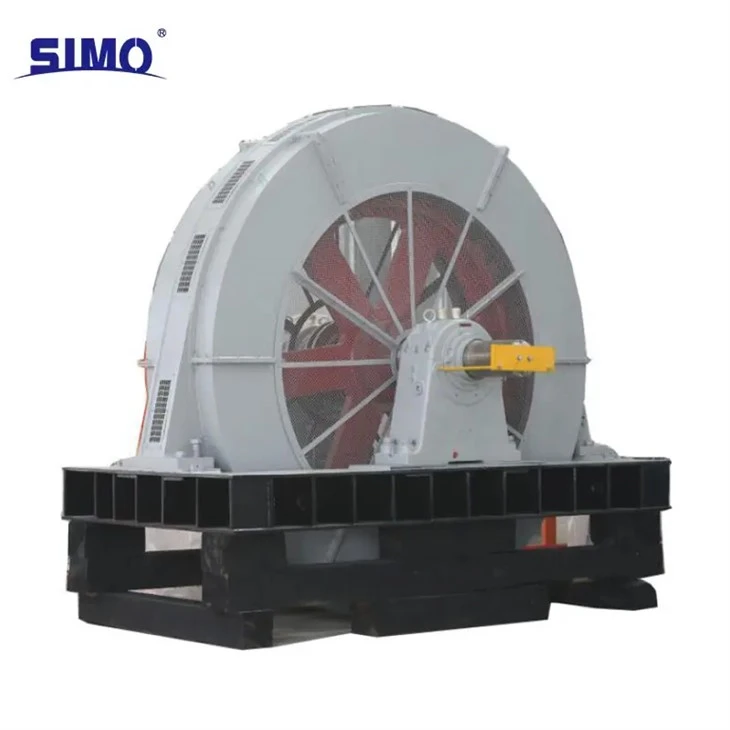

The design of the TDMK400-30/2150 is precisely optimized for low speed and high load applications: In terms of the main components, the stator uses a large diameter core design (2150mm) to increase the effective electromagnetic area. This is complemented by thick section copper winding wire, providing a stable power output of 400 kW. The rotor uses a 30-pole configuration with an optimized pole structure, equipped with damping windings positioned according to the magnetic field characteristics at low speeds, providing a balance between starting performance and operating stability. To ensure installation compatibility, the IM7311's standardized flange dimensions allow direct connection to most heavy equipment flanges. This promotes high positioning accuracy and shortens installation and commissioning cycles, significantly increasing project efficiency.

TDMK400-30/2150 has the main technological advantages of “high reliability, strong environmental adaptability and stable torque at low speeds.” It promotes industrial production through three key technologies: First,-IP55 protection technology provides complete protection against dust and splashing water from any direction through the sealed frame design and special bearing protection design, which greatly expands the range of operating conditions; Secondly, the integration of Class F insulation with VPI vacuum impregnation provides the stator windings with superior resistance to high voltage, corona and moisture, ensuring long-term trouble-free operation in high voltage 6 kV environments. Thirdly, stable drive technology at low speeds: the rotor is equipped with special damping windings and undergoes high-precision dynamic balancing. This ensures minimal vibration and noise at low speeds of 100 rpm along with low torque variations to ensure machine precision.

These motors are manufactured to the JB/T1473-2000 standard for mining applications. They are suitable for indoor environments at altitudes up to 1000 m, at temperatures up to 40 degrees, with low dust content and without corrosive gases. Rated voltage - 6 kV or 10 kV (3 kV on request), voltage tolerance - ±5%. Rated frequency - 50 Hz, power factor - 0,9. Protection level - IP00 (can be upgraded to IP20), cooling method - IC01, installation type - IM7311. The motor shaft has a cylindrical extension and rotates counterclockwise (or clockwise on request). The shaft extension cannot withstand radial or axial forces when connected to the coupling. The excitation system uses an SCR device, the motor provides direct starting at full voltage (reduced starting can be used if necessary). The stator wires exit through six heads (U1, V1, W1, U2, V2, W2) from the bottom. Bearings with an oil ring or composite bearings with an insulating gasket are used. The shaft can be perforated on request for a pneumatic coupling.
