Synchronous motors 10 kW TK250-10/1180-10-250KW-IP20-IM7311

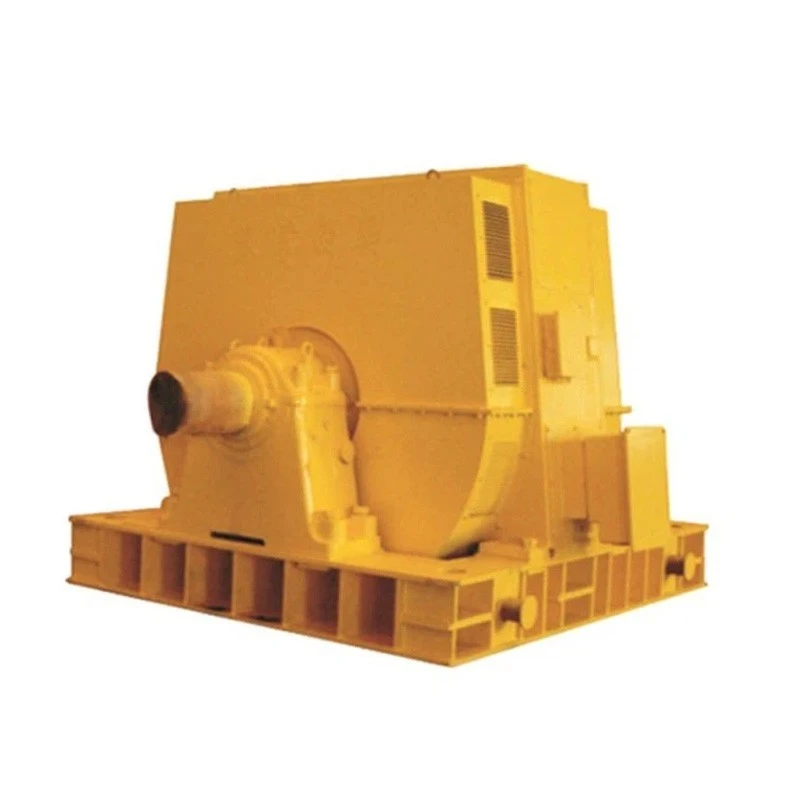

Synchronous electric motor T800-6/1180 - high voltage unit for heavy industrial loads. Rated parameters: power 800 kW, voltage 6 kV, frequency 50 Hz, 6 poles. Mounting design IM7311 (flanged horizontal) provides reliable fastening to the equipment, protection class IP20 is suitable for dry indoor spaces.

Stator with class F insulation, treated with VPI impregnation, resistant to high voltage and corona discharge. A rotor with damping winding guarantees stable synchronous operation and low vibrations. Cooling system IC01 (self-cooling by shaft fan) effectively removes heat at rated load. High-strength steel body with reinforced ribs, heat-annealed - provides rigidity and durability under heavy loads.

The Simo T - series of motors are our newly developed higher speed motors, allowing direct starting under full voltage. During starting, the rotor circuit must be connected with 10 times greater starting resistance than the field winding resistance. T series synchronous motor - is an AC motor that rotates at synchronous speed by interacting with the DC field magnetic field and the rotating armature magnetic field to produce torque. It can not only independently control the electromagnet, but also keep the rotor stationary, so it is often used not only in industry, but also in everyday life. It is useful for improving the power factor of the electrical network. Therefore, it is often used as a drive for large equipment such as blowers, water pumps, ball mills, compressors, rolling mills, etc.
