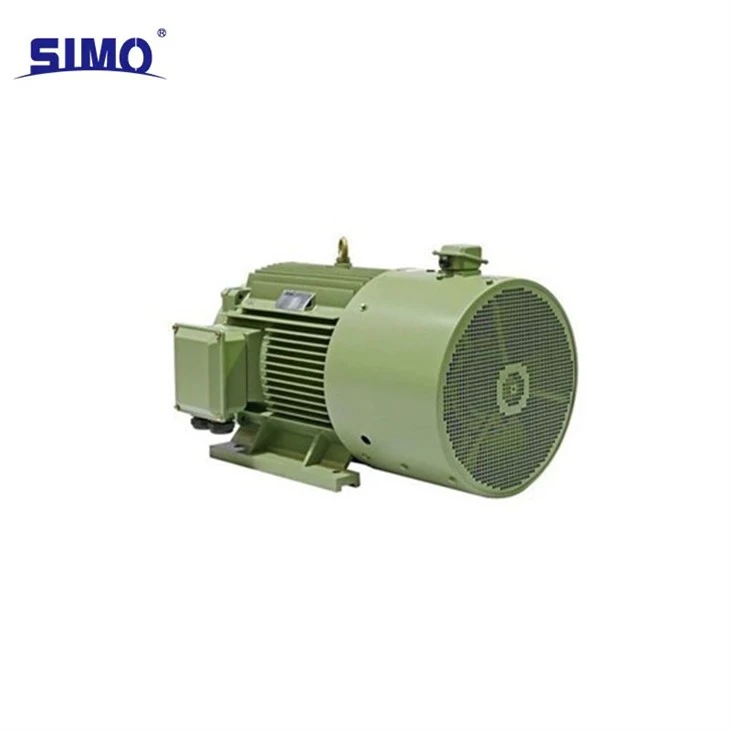

Engine Description
•TCYP5 series are three-phase permanent magnet synchronous motors with frequency regulation (axis height H80-H355) and three-phase permanent magnet reluctance synchronous motors with frequency regulation (axis height H132-H355), respectively.
•These series are characterized by a permanent magnet rotor, which provides higher efficiency and power density compared to asynchronous motors. The speed control system, which consists of this series motor and frequency drive, has a wide speed control range and high efficiency over the entire speed range.
Engine parameters
|
Type |
Rated power |
Speed |
Rated voltage |
Rated current |
KND |
Power factor |
Rated torque |
Rated frequency |
Idle noise dB |
weight |
Adaptation to inverter |
|
kW |
rpm |
IN |
A |
% |
cosф |
Nm |
Hz |
||||
|
synchronous speed 3000(r/min) |
|||||||||||
|
TYP5-80M1 |
11 |
3000 |
380 |
20.9 |
94 |
0.90 |
35.0 |
100 |
79 |
67 |
XBP480T11GB-PLUS |
