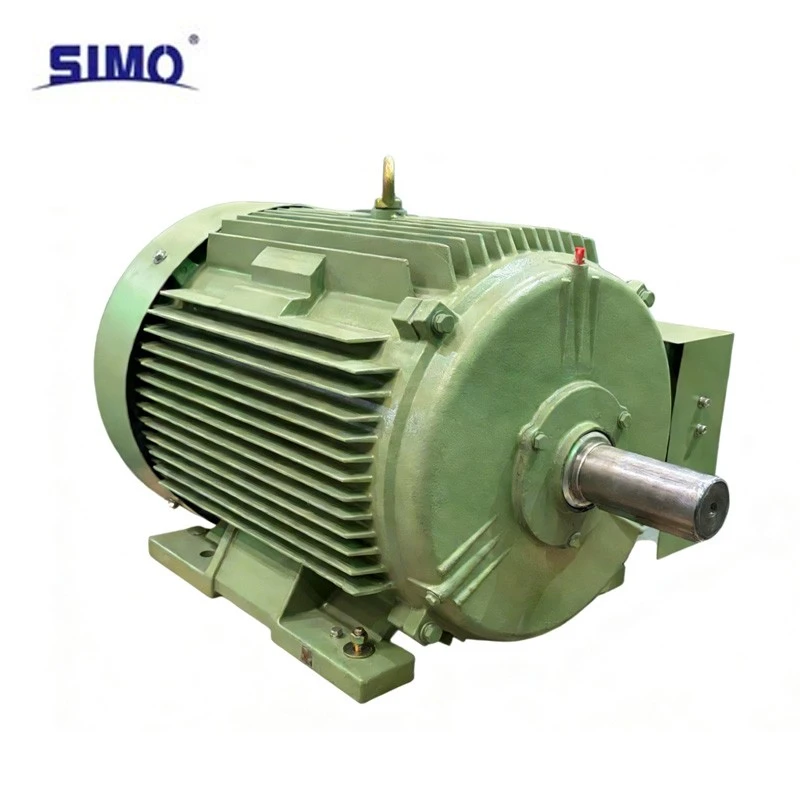

Electric motor 37kW YE5-250M-6-37Kw-380V-IC411-B3

Optimized electromagnetic system design: The stator uses high-quality corrosion-resistant -copper windings and the rotor adopts a squirrel-cage design made of highly conductive materials to ensure excellent starting performance.

Robust and Compact Mechanical Design: The motor housing is made of high-strength gray cast iron, resulting in a compact design and light weight. Mounting configurations comply with IEC standards and support various types, including IMB3, IMB5 and IMB35. Typically used to drive general purpose mechanical equipment such as water pumps and fans.

Reliable Cooling and Protection System: Adopting fully enclosed self-ventilated cooling IC411 ensures high heat dissipation efficiency. The IP55 rating provides effective protection against dust and water, protecting internal components.

Strict production control and superior insulation: The stator windings are Vacuum Pressure Impregnated (VPI) to provide reliable insulation with enhanced moisture and impact resistance.

High efficiency and energy saving, low operating cost: Complies with national standard GB 18613-2020 (energy efficiency class 1) and international standard IEC 60034-30 IE5.

Reliability and long service life: Equipped with high quality bearings and sealing devices, ensuring low vibration and high operating stability. A large thermal heating reserve effectively extends the service life of the motor and reduces the frequency of maintenance and replacement.

Low noise, environmentally friendly and highly adaptable: Operating noise level is only 76 dB(A), IP55 protection level. The motor is capable of operating in harsh industrial environments with high temperature, humidity and dust.
