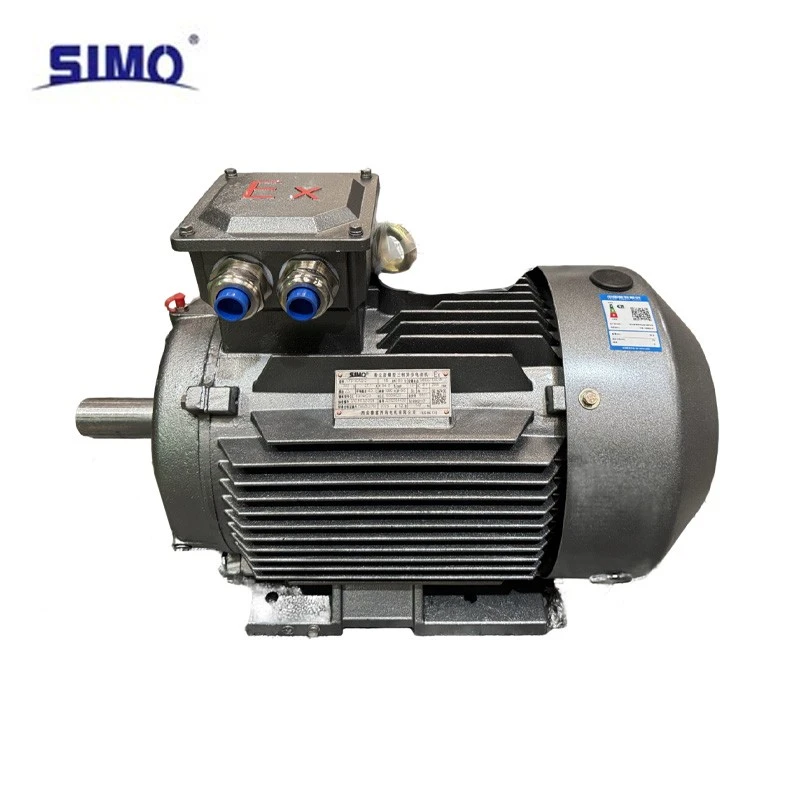

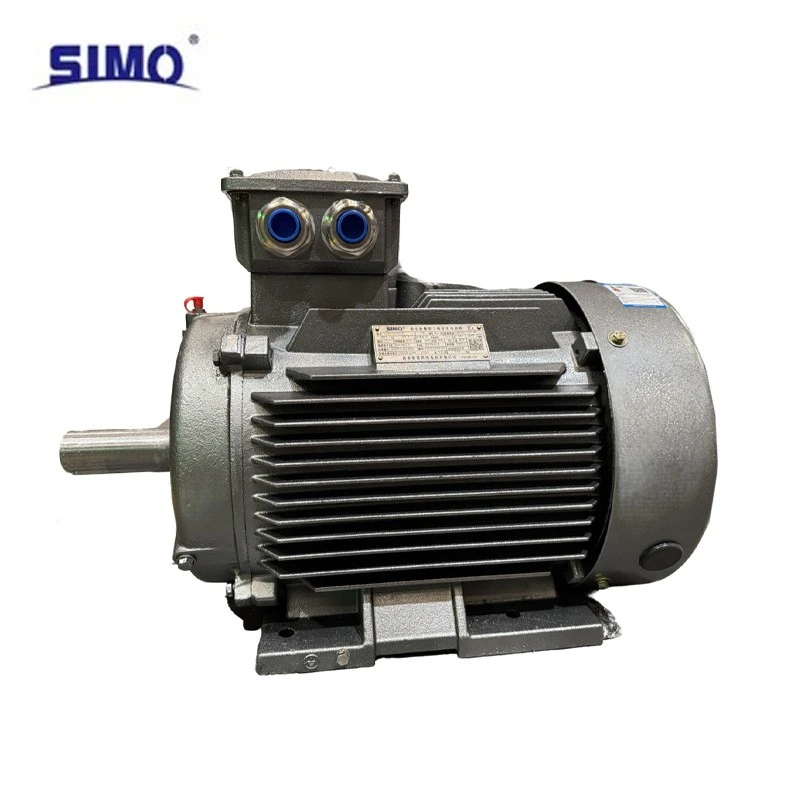

Explosion-proof electric motor 15 kW Ex Tb ⅢC T135℃Db-YFB160M2-2-15KW-380V-IP65-B3

Explosion-proof special design: has a monoblock cast iron body with IP65 protection class, providing high rigidity and impact resistance, which creates a reliable barrier against the ingress of flammable dust particles. The explosion-proof junction box has a sealed design with heat-resistant terminals and reliable grounding, eliminating safety hazards.

Highly efficient insulation and heat dissipation: Pure copper windings are VPI treated with Class F insulation rated at 155 degree. The IC411's fully enclosed, self-ventilated design provides efficient heat dissipation, keeping surface temperatures below a safe threshold of 135 degrees.

Stable transmission adaptability: The rotor undergoes high-precision dynamic balancing for smooth and low-noise operation. Wear-resistant, sealed bearings with long-life lubrication extend service intervals. The standardized IMB3 mount makes adaptation easy.

Detailed security enhancements: Critical components are corrosion and wear resistant. Explosion-proof seals on cable outlets and rust/corrosion-resistant frames ensure suitability for use in dusty environments.

High adaptability to the environment:IP65 + class F insulation ensures stable operation in a wide temperature range (from -15℃to 40 degree) and at altitudes of less than or equal to 1000 m, which allows you to work in difficult conditions with high levels of dust without additional shielding.

Controllable operating costs:The standardized design makes maintenance easy, and long-life bearing lubrication extends service intervals. Comprehensive after-sales support and a wide range of Xima brand spare parts reduce operating costs.
